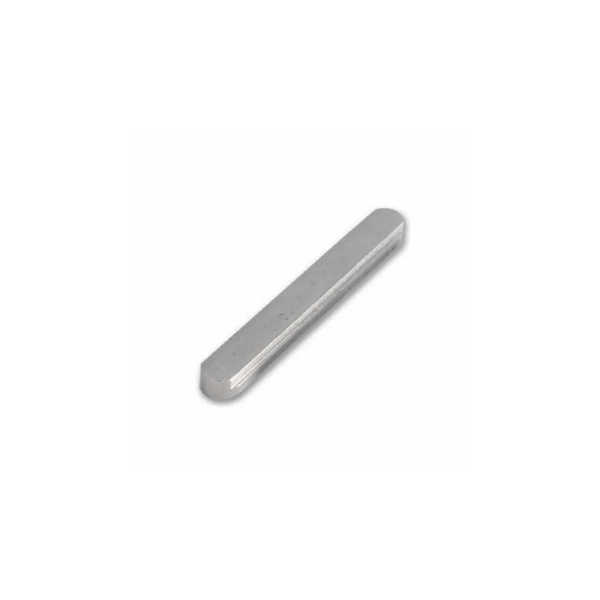

Stainless steel key, suitable for Vetus ISO 4566 propeller shafts.
GLA2504 is a special adaptor key which reflects a change in the ISO 4566 specifications for 25mm prop shafts and has two widths to adapt a new 8mm wide keyway to an older 6mm wide keyway. The length of 40mm is unchanged.
| Part code |
Shaft |
W x H x L |
| GLA2503 |
25mm |
8mm x 6mm x 40mm |
| GLA2504 |
25mm |
6/8mm x 6mm x 40mm |
| GLA3003 |
30mm |
8mm x 7mm x 50mm |
| GLA3503 |
35mm |
10mm x 8mm x 56mm |
| GLA4003 |
40mm |
12mm x 8mm x 63mm |
| GLA4503 |
45mm
50mm |
14mm x 9mm x 63mm |
Please note that GLA4503 is not usually stocked and as such, a lead time of 2-4 weeks will usually apply. Please contact us before ordering for availability information if your order is urgent.
