Vetus hydraulic steering cylinders are tried-and-tested and will last a generation with minimal maintenance!
The MTC52 is a high quality brass bodied hydraulic cylinder for yachts, launches and other small work boats. It is supplied with zinc plated rod end (stainless steel upgrade available) and compression fittings for 8mm x 10mm hose, with bleed nipples.

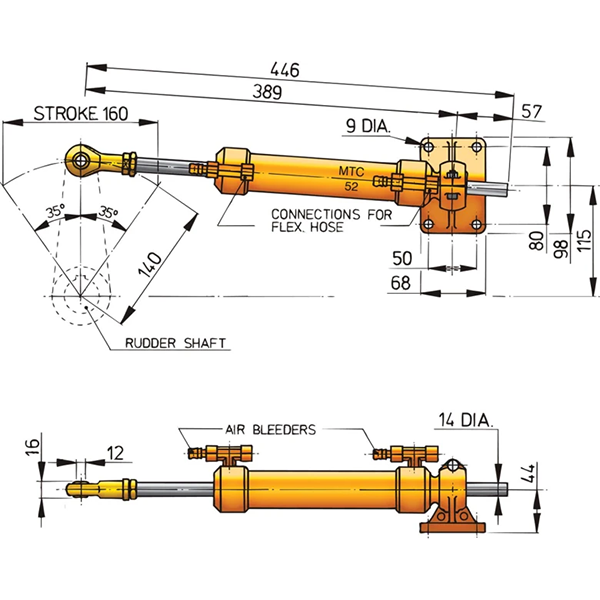

Specifications
Recommended helm pump: HTP20 (5.3 turns) or HTP30 (3.5 turns)
Max torque: 510Nm
Recommended tiller arm length: 140mm
Stroke: 160mm
Volume: 104cc
Connections: G¼ female pipe thread with 10mm connectors
Specified rudder angle: 35° either side of ahead (total 70°)
Specified pressure 56kg/cm² (5492 kPa) / 797psi
We would be happy to calculate the most appropriate cylinder you require: please contact us with the rudder dimensions and vessel speed.
