Vetus hydraulic steering cylinders are tried-and-tested and will last a generation with minimal maintenance!
The MTC175 is a high quality brass bodied hydraulic cylinder for yachts, launches and work boats. It is supplied with zinc plated rod end (stainless steel upgrade available) and compression fittings for 8mm x 10mm hose, with bleed nipples.

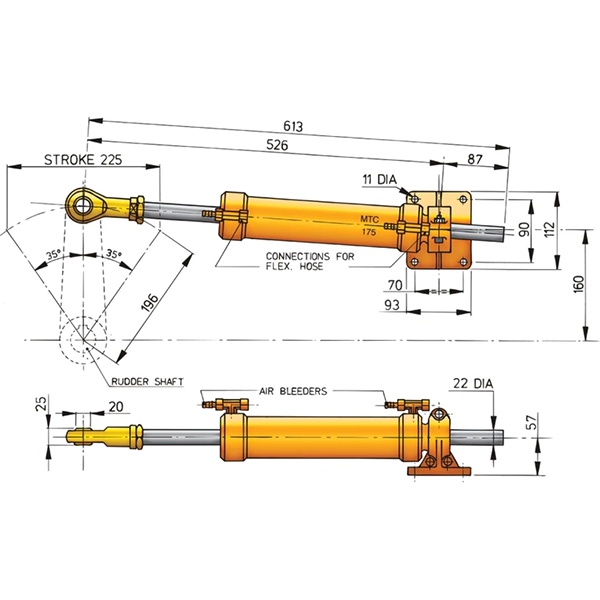

Specifications
Recommended helm pump: HTP42 (8.5 turns)
Max torque: 1717Nm
Recommended tiller arm length: 196mm
Stroke: 225mm
Volume: 356cc
Connections: G¼ female pipe thread with 10mm connectors
Specified rudder angle: 35° either side of ahead (total 70°)
Specified pressure 56kg/cm² (5492 kPa) / 797psi
We would be happy to calculate the most appropriate cylinder you require: please contact us with the rudder dimensions and vessel speed.
