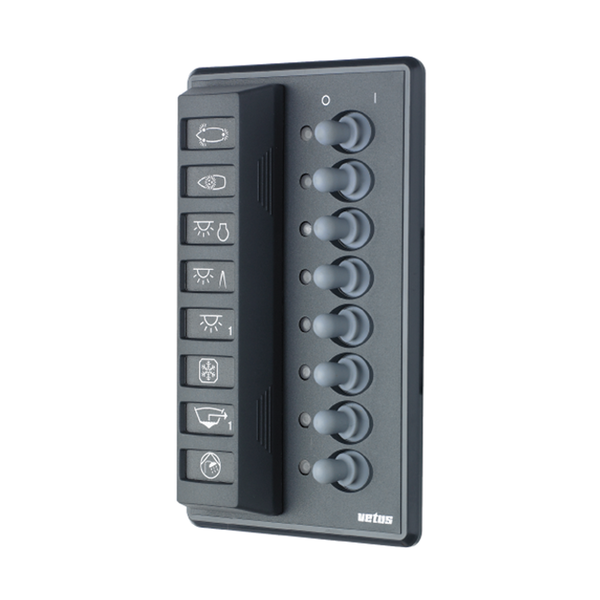

The Vetus P8FA is an 8-way switch panel 8-way, splash proof to IP64. It is suitable for 12v and 24v operation.
It has 8 separate switched circuits, each provided with a switch, indicator LED and fuse holder for blade fuses.

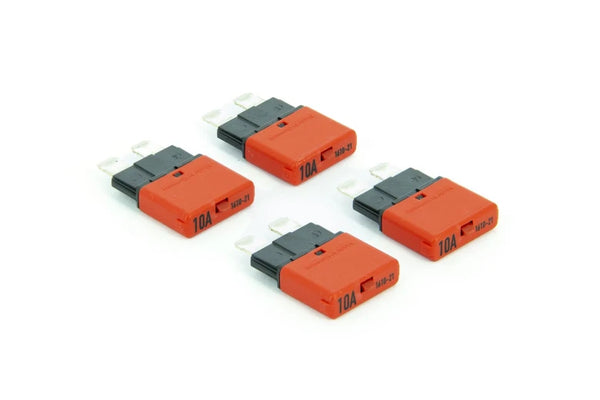

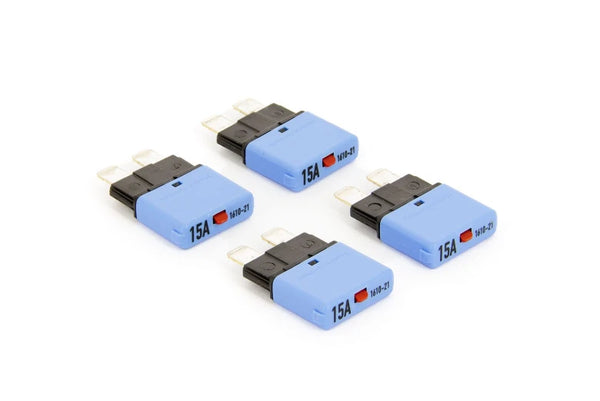

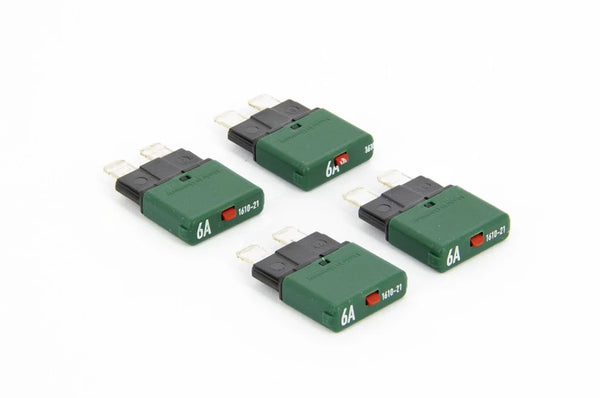

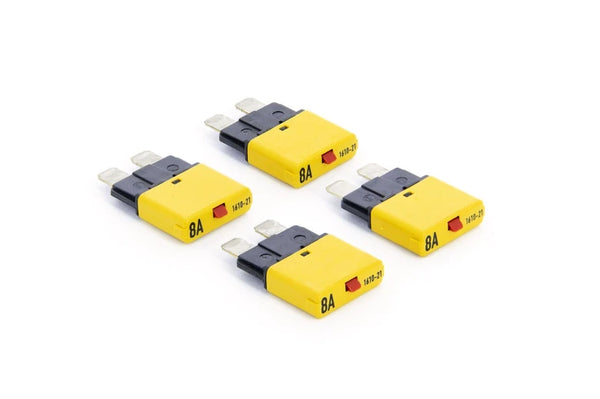

It is supplied as standard with 2x 1A, 2x 3A, 4x 5A, 2x 7.5A, 2x 15A fuses, but these can be replaced by automatic fuses, for which a second fuse cover is included to accommodate the additional space required.
Dimensions: 99mm x 161mm
Built-in depth: 45mm
Vetus switch panels are not usually a stock item and a lead time of 2-4 weeks will usually apply. Please contact us before ordering for availability information if your order is urgent.
